| Ask Lasest Price | |
| Brand Name : | SIGNUM |
| Certification : | ISO9001:2008 |
| Model Number : | SGYWB11 |
| Price : | USD25.25 |
| Delivery Time : | 20 Days |
| Payment Terms : | TT, L/C |
| Supply Ability : | 5,000 tons/month |
Name | Rail Fish Plate, Joint Bar | |||
Type | Length /Diameter | Weight(Kg) | Material | |
115RE | 4 hole- 24″ | 17.04 | 45# Chemical composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 | 50# Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
115RE | 6 hole -36″ | 25.56 | ||
132-136RE | 4hole-24″ | 17.75 | ||
132-136RE | 6hole-36″ | 26.63 | ||
UIC60 | 4 hole - 630/Dia.26 | 18.07 | ||
UIC60 | 4 hole-600/Dia.28 | 17.47 | ||
UIC60 | 4 hole - 630/Dia.25 | 18.1 | ||
UIC54 | 4hole | 14.34 | ||
UIC54 | 6hole- 800 | 19.94 | ||
BS80A | 4hole | 6.5 | ||
BS90A | 685.8 / Dia.26 | 13.23 | ||
BS90A | 792.9/Dia.26 .2 | 15.34 | ||
90/91LB | 4 hole | 18.08 | ||
90/91LB | 6hole | 19.9 | ||
50Kg | 4hole | 14.3 | ||
50Kg | 6hole | 19.5 | ||
BS75R | 4hole | 6.56 | ||
BS60A | 4hole | 5.61 | ||
S49 | 4 hole | 9.71 | ||
Signum Machinery Co., Ltd manufactures railway fasteners and
standard components. As a leading railway fasteners manufacturers
in China,with production license of Chinese railway Ministry,
advanced technology, high precision inspection instruments and
service, our products have been widely exported the USA, Germany,
Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the
UK, India, and South Africa etc.
We can provide products according to customers drawings and
samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!

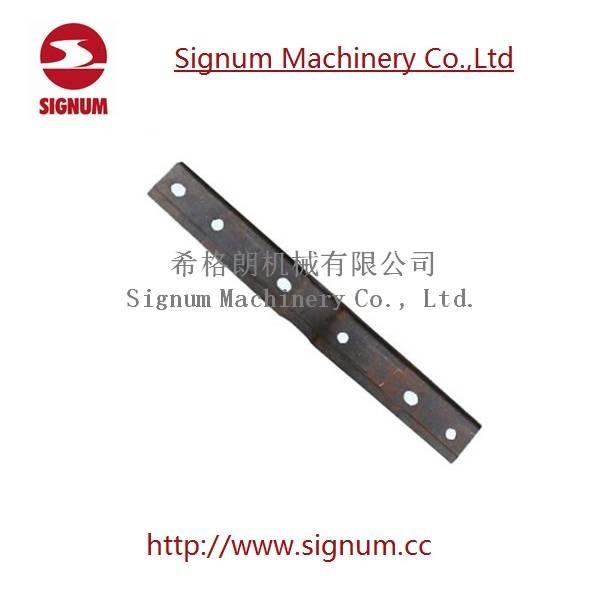

Rail Fish Plate, joint bar
|
|
